ToolH-WR - 3512 WC -
The above image may not be an exact representation of the product.

3512 WC

Application: Wire Rope

Product Description

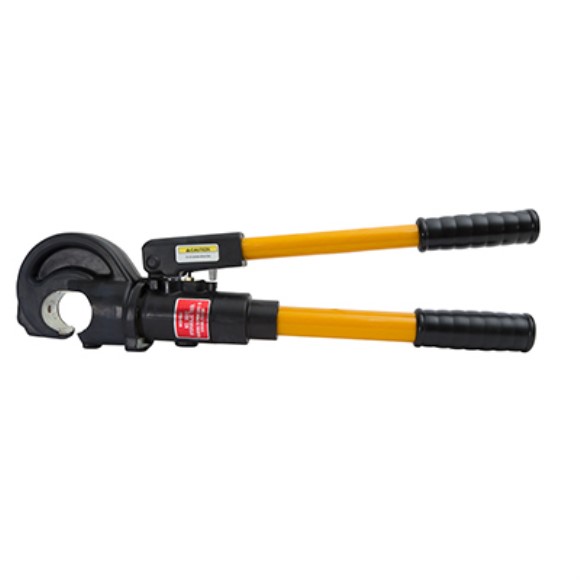

Hand operated 12 ton hydraulic compression tool. Two stage rapid advance pumping system. Swages the full range of Nicopress® product up through ½" (12mm). Interchangeable tool dies will press copper, aluminum and steel splicing sleeves.

  • Dimensions:  23"L x 6.5"H x 3.5"W (59cm x 16.5cm x 8.9cm)
  • Weight:  13 lbs (6kg)
  • Wire Size:  3/64" (1mm) to 1/2" (12mm)
  • Compression Output:  12-ton
  • Product Type : Tool-Hydraulic 12 Ton
  • Wire Size : Up to 1/2 Inch
  • Application : Wire Rope
