ToolH-WR - 635-A -
The above image may not be an exact representation of the product.


Application: Wire Rope

Product Description

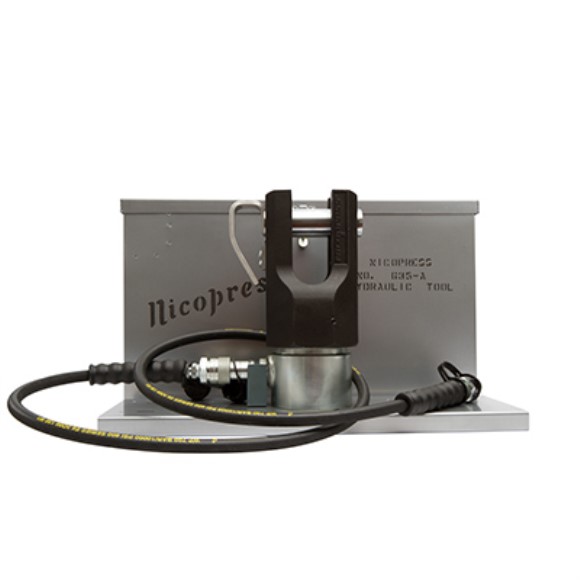

35 ton power hydraulic compression tool designed for a range of markets. Most versatile swager of its size. Includes disconnect coupling, six-foot hydraulic hose (#2696), and ready for hook up to hydraulic power source in steel carrying case. Designed to operate at 10,000 PSI hydraulic pressure. Compatible with the full range of Nicopress® oval and stop sleeves and will swage sleeves up through 5/8" (16mm). Shop and field applications. Interchangeable tool dies will press copper, aluminum and steel splicing sleeves.

  • Dimensions:  9"L x 13"H x 6.5"W (33cm x 16.5cm x 23cm)
  • Weight:  45 lbs (21kg)
  • Wire Size:  3/64" (1mm) to 5/8" (16mm)

Accessories for 635A hydraulic tool:

  • 2498 CABLE CUTTER – Cable Cutter Die for copper and aluminum conductors. 5/8" diameter maximum capacity.
  • NEH-1 Hydraulic Pump
  • 2730 HOSE 6' – Hydraulic extension hose assembly for 635-A tool head
  • 2740 HOSE 12' – Hydraulic extension hose assembly for 635-A tool head
  • Product Type : Tool-Hydraulic 35 Ton
  • Application : Wire Rope
