SA1 - 3-064-B -
The above image may not be an exact representation of the product.

3-064-B

Application: Signal

Product Description

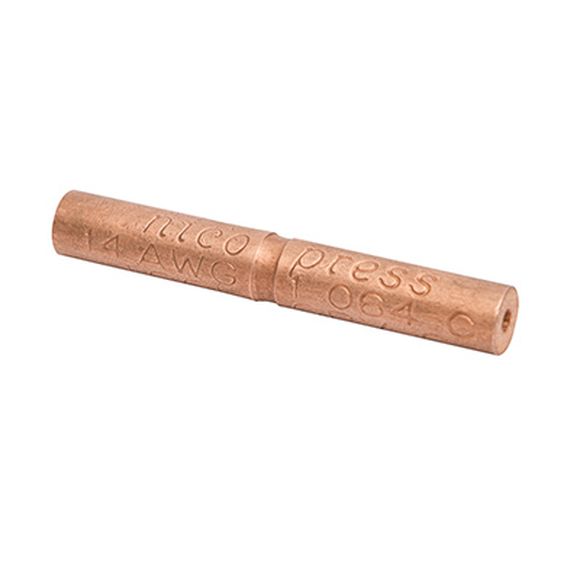

Splicing Sleeve for Solid Copper Wire

SA1
  • Signal and Telecommunication splicing sleeves are designed to butt-splice the a range of solid wire types.
  • Sleeves often develop 100% of the rated breaking strength of the conductor.
  • Seamless High Conductivity Copper or Copper Alloy Tubing
  • Specially Bonded Inner Bore Coating
  • Rolled Center Constriction Conductor Stop
  • Catalog stock number, wire size and Installation tool groove marked on sleeve where applicable
  • Product Type : Splicing Sleeve
  • Product Material : Copper
  • Wire Type : Copper Solid
  • Wire Size : 14 AWG
  • Groove : B
  • Application : Signal
  • Length : 1 1/8 Inch
  • Weight : 2.7 Lbs/1000
  • Standard Package : 200
