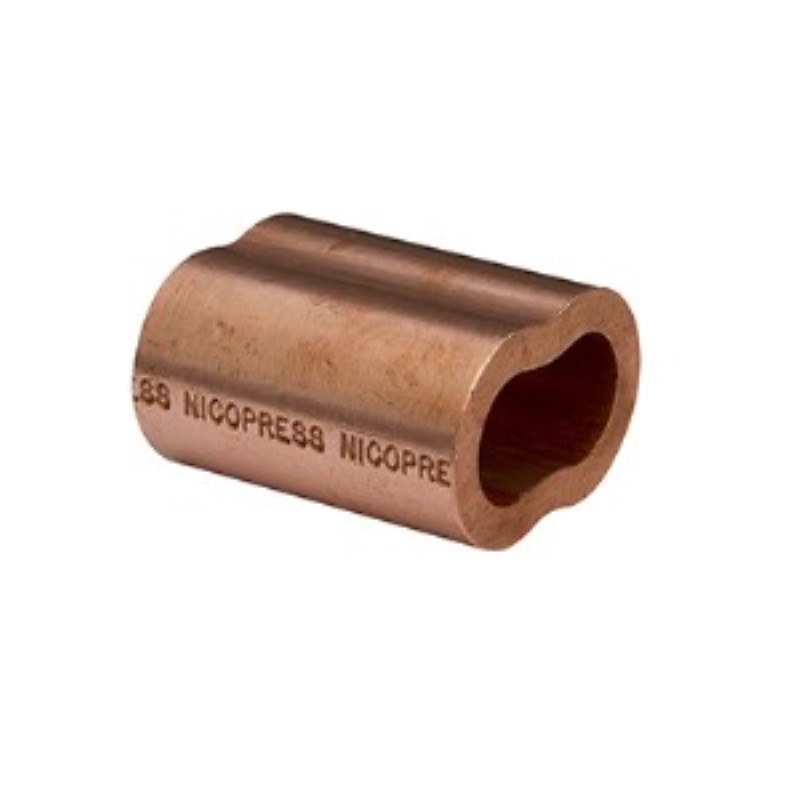

18-25-K8 Copper Oval Sleeve for 1/2 Inch, 12mm - 13mm
Application: Wire Rope
Nicopress Copper and Zinc-Plated Copper Oval Compression sleeves (sometimes called ferrules), originally patented by our engineers, are used for making eye and lap splices on wire rope. They are economical and can hold approximately 100% of the cable's rated breaking strength, depending on the cable size and type used and conform to MS51844. We have determined through pull-testing that Nicopress Oval Sleeves will hold military specification grade aircraft cable in tension until it breaks, when the cable is made to military specifications for 3x7, 7x7, 7x19 and 6x19 IWRC and correctly applied with Nicopress Tools.
- Product Type : Oval Sleeve
- Product Material : Copper
- Wire Type : Wire Rope
- Wire Material : Galvanized Steel
- Wire Size : 1/2 Inch
- Metric Wire Size : 12mm - 13mm
- Application : Wire Rope
- Length : 1-7/8 Inch (48mm)
- Mil Standard : MS51844-52
