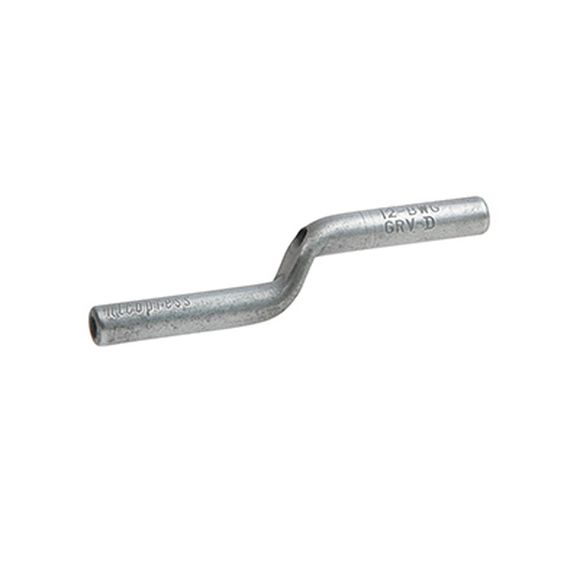

The above image may not be an exact representation of the product.
95-109-C
Application: Signal
Product Description
Full tension offset dead-end assemblies are used to terminate signal and telecommunication wire on pin, knob, spool or strain insulators. This sleeve is designed to allow the fabrication of a loop of any desired size for connecting to dead-end fixtures using standard Nicopress tools. It also permits the feed thru of a tail of wire which can be spliced to other wires. This Nicopress sleeve is made of high strength seamless metal tubing with specially bonded inner bore coating. Offset dead-end sleeves are used in the following wire and sleeve combinations: for solid copper wire and solid copper covered steel (Copperweld®) wire the sleeves are made of seamless copper alloy electrogalvanized steel tubing; and for solid aluminum covered steel (Alumoweld®) the sleeves are made of seamless aluminum alloy tubing. Each sleeve is marked with catalog stock number and installation tool groove.- Wire Size : 12 BWG
- Grade : BB
- Weight : 9
- Standard Package : 100
- Groove : C
- Product Type : Dead-End
- Wire Material : Galvanized
- Wire Type : Solid
- Application : Signal
