PE4 - AR-4/0-75A -
The above image may not be an exact representation of the product.

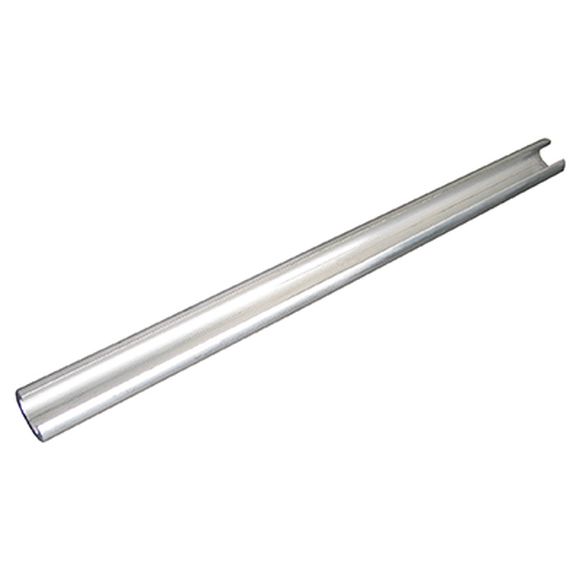

AR-4/0-75A Repair Sleeve for All Aluminum Strand 4/0 AWG

Application: Power Distribution

Product Description

Nicopress® Split Repair Sleeves for Stranded All Aluminum Conductor - Full Tension are split their entire length so they can be slipped over damaged or broken wire sections of conductors. Installation of split repair sleeves restores the original conductivity of the conductor and 95% of the breaking strength of the conductor. This is true even when 1/3 of the conductor wires are broken. These sleeves may be used as a seat for hot line clamps.

  • High Conductivity Extruded Aluminum
  • Sleeves Develop 95% or More of the Rated Breaking Strength of the Conductor
  • Wire Brushing of Conductor and use of Splicing Compound Recommended
  • Each sleeve is marked with catalog stock number, conductor size, and installation tool groove.
PE4
  • Product Type : Repair Sleeve
  • Product Material : Aluminum
  • Wire Type : All Aluminum Strand
  • Wire Size : 4/0 AWG
  • Groove : 75A
  • Stranding : 19 WIRE
  • Application : Power Distribution
  • Tensile : Full Tension
  • Length : 12 Inch
  • Weight : 550 Lbs/1000
  • Standard Package : 10
