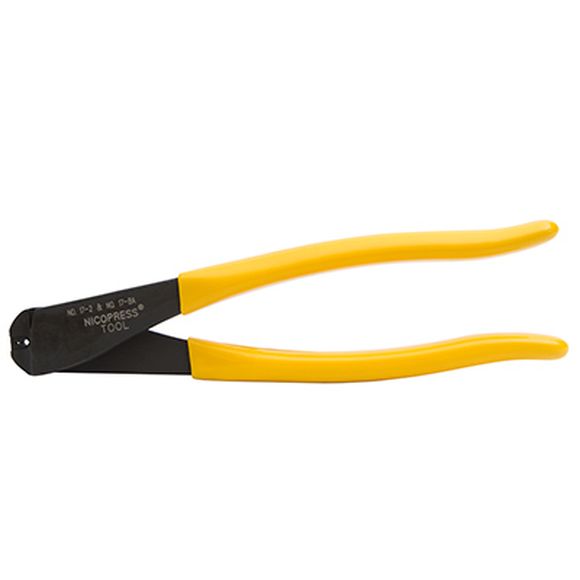

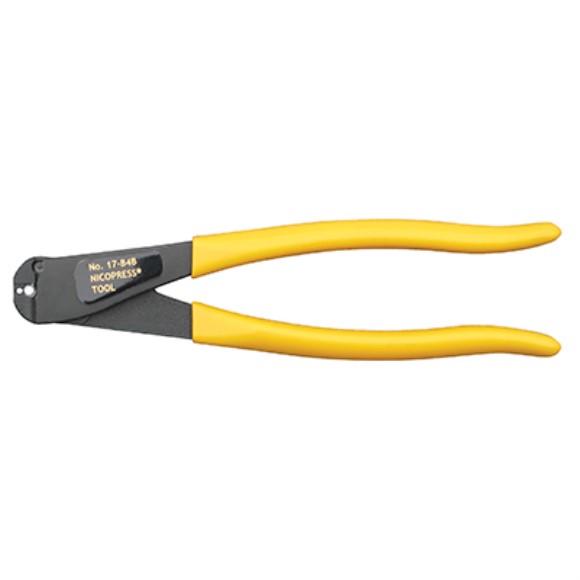

TM2 - 17-B4B -
The above image may not be an exact representation of the product.

17-B4B

Application: Wire Rope

Product Description

Manual 17 Series Tool

TM2

Engineered for field conditions, Nicopress tools are manufactured from alloyed forged steel with specially hardened working surfaces. Tools are designed to create maximum metal flow of the splicing sleeve around the wire or conductor. This results in splices that are strong and reliable. Tools have either single or multiple marked pressing grooves matching similar markings found on Nicopress sleeves. 'GO' gauges supplied with each tool assure accurate compression of sleeves.

  • Product Type : Hand Tool 17
  • Wire Size : 1/32 to 3/64 Inch
  • Metric Wire Size : 1mm, 2mm
  • Groove : VB4, VB
  • Application : Wire Rope
  • Tool Length : 8 Inch
  • Acceptable Material : Copper, Aluminum
  • For: Wire Rope
