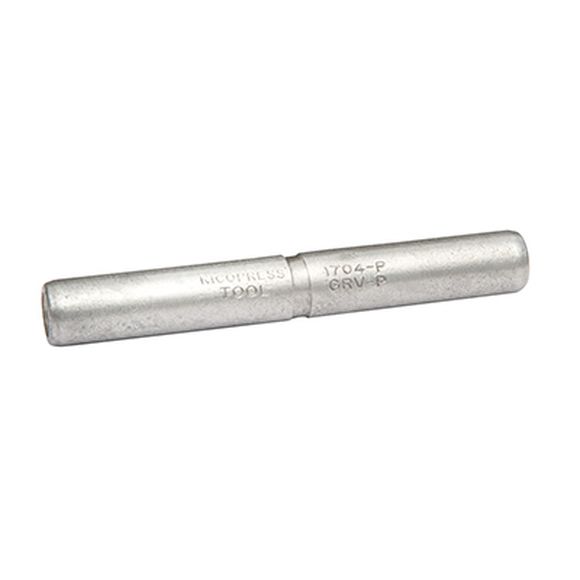

The above image may not be an exact representation of the product.

1704-P

Application: Power

Product Description

These partial tension sleeves and units are designed to splice the neutral of self-supporting service drop cables (Triplex) and short span overhead distribution lines. There are two types of these sleeves.  The single piece sleeve is made of high conductivity seamless aluminum tubing. The two piece unit consists of an inner core wire splicing sleeve and a larger cover sleeve.  The core sleeve is made from high strength galvanized seamless steel tubing and the cover sleeve is made from high conductivity seamless aluminum tubing. Each sleeve is marked with catalog number, conductor size and installation groove.

·         Seamless High Conductivity Aluminum Tubing
·         Inner Bore Filled with Special Oxide Inhibiting Compound
·         Solid Staked Center Barrier
·         Capped Ends

  • Product Material : Aluminum
  • Wire Size : 4 AWG
  • Stranding : 6/1, 7/1
  • Weight : 36
  • Standard Package : 25
  • Length : 3 1/4"
  • Groove : P
  • Application : Power
  • Product Type : Splicing Sleeve
  • Tensile : Partial Tension
  • Wire Material : ACSR
  • Wire Type : Stranded
