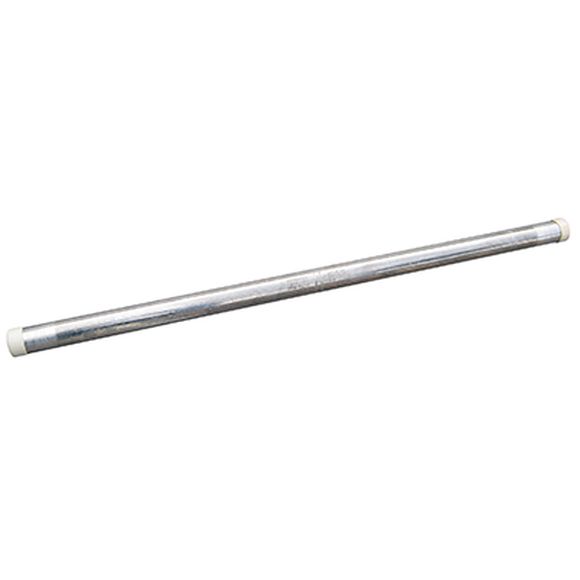

The above image may not be an exact representation of the product.
3061-75A Splicing Sleeve for ACSR, AAAC, 5005 3/0 AWG
Application: Power Distribution
Product Description
Splicing Sleeve for ACSR, AAAC, and 5005 Stranded Conductor - Full Tension
- Aluminum single piece splicing sleeve
- Seamless High Conductivity Aluminum Tubing
- Sleeves Develop 95% or More of Rated Braking Strength of the Conductor in Conformance With EEI-NEMA Standard ANSI C119.4-2011
- Inner Bore Filled with Special Oxide Inhibiting Compound
- Solid Staked Inner Barrier
- Capped Ends
- Each sleeve is marked with a catalog stock number, conductor size and installation tool groove.
- Product Type : Splicing Sleeve
- Product Material : Aluminum
- Wire Type : ACSR, AAAC, 5005
- Wire Size : 3/0 AWG
- Groove : 75A
- Stranding : 6/1
- Application : Power Distribution
- Tensile : Full Tension
- Length : 20 Inch
- Weight : 1112 Lbs/1000
- Standard Package : 10
