PE21 - AL-4-STR-X -

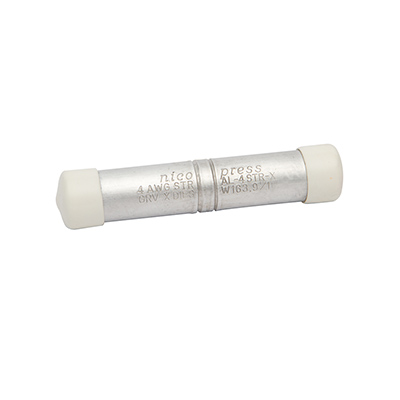

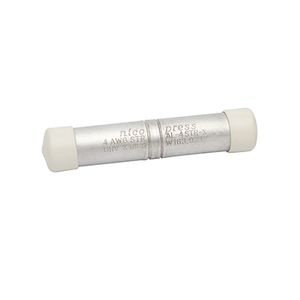

The above image may not be an exact representation of the product.

AL-4-STR-X

Application: Power

Product Description

Electrical conductor splicing sleeves are designed to splice the following types of conductors: both solid and stranded aluminum and aluminum covered steel (Alumoweld) conductor; ACSR, AAAC and 5005. These full tension single piece sleeves are made of high conductivity seamless aluminum tubing and develop the maximum rated breaking strength of the conductor in conformance with ANSI C119.4-2011 (where applicable). Each sleeve is marked with catalog stock number, conductor size and installation tool groove.

·
Seamless High Conductivity Aluminum Tubing
· Sleeves Develop 95% or More of Rated Braking Strength of the Conductor in Conformance With EEI-NEMA Standard ANSI C119.4-2011
· Inner Bore filled with Special Oxide Inhibiting compound
· Solid Staked Inner Barrier
· Capped Ends
· Wire Brushing of Conductor and Use of Splicing Compound Recommended
  • Product Material : Aluminum
  • Wire Size : 4 AWG
  • Stranding : 7 WIRE
  • Weight : 51
  • Standard Package : 50
  • Length : 2 3/4"
  • Groove : X
  • Application : Power
  • Product Type : Splicing Sleeve
  • Tensile : Full Tension
  • Wire Material : All Aluminum
  • Wire Type : Stranded
