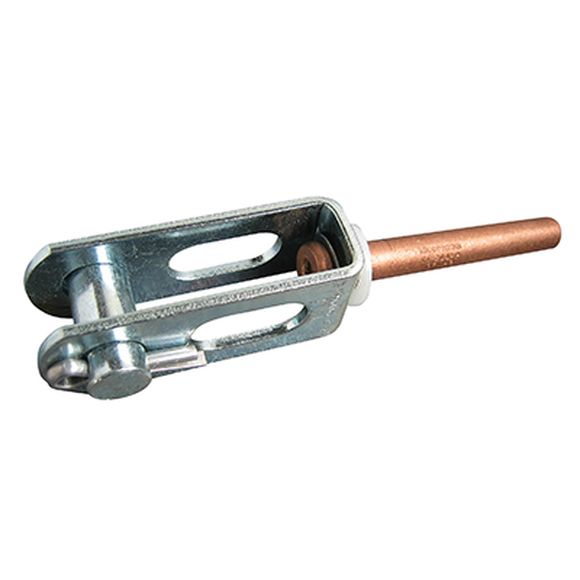

The above image may not be an exact representation of the product.
71-258/7-X
Application: Power
Product Description
The suspension dead-end sleeves are designed for the termination of conductors on suspension insulators or on neutral wire eye bolts using standard Nicopress tools. A tail of conductor may be fed thru this sleeve. This feed-thru design permits any desired length of conductor to be spliced to other lines or fixtures .These full tension sleeves are made of high strength seamless metal tubing with a specially bonded inner bore coating. The clevis and pin are made of hot dipped galvanized steel. Each sleeve is marked with catalog stock number and installation tool groove.
· Seamless Copper Alloy*
· Specially Bonded Inner Bore Coating
· Sleeves Develop 95% or More of the Rated Breaking Strength of the Conductor
- Product Type : Suspension Dead-End (Clevis Type)
- Product Material : Copper
- Wire Type : Copper Strand
- Wire Material : Copper
- Wire Size : 2 AWG (7, 19 WIRE)
- Groove : X
- Application : Power
- Tensile : Full Tension
- Weight : 520 Lbs/1000
- Standard Package : 50
